February 27, 2025

How IoT Is Revolutionizing Smart Factories

 How IoT Is Revolutionizing Smart Factories

The manufacturing world is undergoing a seismic shift—and at the center of this transformation is the Internet of Things (IoT). What was once a buzzword has now become a game-changer, redefining how factories operate, make decisions, and deliver value. Known as the backbone of smart factories, IoT is revolutionizing industrial processes by connecting machines, systems, and people like never before.

In this article, we’ll explore how IoT is driving this change and what it means for the future of manufacturing.


What is IoT in Smart Factories?

In the context of manufacturing, the Industrial Internet of Things (IIoT) refers to the use of smart sensors, embedded systems, and networked devices to collect, analyze, and act on real-time data from physical assets. These “things” can be machines, robots, conveyor systems, storage units—or even the products themselves.

By turning traditional factories into data-driven, intelligent environments, IoT enables seamless communication between devices and centralized control systems, forming the foundation of the smart factory.


Key Ways IoT is Revolutionizing Smart Factories

1. Real-Time Monitoring and Visibility

IoT sensors track variables such as temperature, vibration, pressure, and machine status in real time. Factory managers can visualize every aspect of production, enabling rapid response to anomalies or inefficiencies.

Example: A CNC machine equipped with vibration sensors can alert technicians to tool wear before it causes defects.


2. Predictive Maintenance

Rather than relying on scheduled or reactive maintenance, IoT enables predictive maintenance, where equipment performance is continuously monitored to predict failures before they occur.

Benefits:

  • Reduces unplanned downtime

  • Extends equipment lifespan

  • Cuts maintenance costs


3. Energy Optimization

Smart factories leverage IoT to monitor energy consumption at a granular level. With insights into which machines are consuming the most power—and when—factories can implement energy-saving strategies without compromising productivity.

Result: Lower utility bills and reduced carbon footprint.


4. Automated Quality Control

IoT devices equipped with cameras, sensors, and AI can inspect products in real time. Defects are identified instantly, and corrective actions are taken automatically.

Advantage: Consistent product quality, lower rejection rates, and real-time traceability.


5. Inventory and Supply Chain Management

IoT-powered RFID tags and smart shelves allow automated inventory tracking. Systems can reorder materials just in time, reducing overstocking or shortages.

Bonus: Integration with suppliers and logistics providers for end-to-end supply chain visibility.


6. Enhanced Worker Safety

Wearable IoT devices can monitor worker health, fatigue levels, or proximity to hazardous zones. If a safety threshold is breached, alerts are triggered instantly.

Real-World Use: Smart helmets or wristbands in mining and heavy industries that detect gas exposure or unsafe behavior.


7. Agile and Flexible Manufacturing

Smart factories using IoT can dynamically adjust production lines based on demand, raw material availability, or customer preferences.

Outcome: Greater flexibility, mass customization, and reduced lead times.


IoT in Action: Real-World Examples

  • Siemens uses IoT in its digital factories to simulate production processes before physical implementation.

  • GE Aviation employs IoT sensors in jet engine components to predict maintenance schedules.

  • Bosch uses connected sensors across its plants to optimize energy use and reduce downtime.


Challenges and Considerations

Despite the promise of IoT in manufacturing, there are several challenges to address:

  • Data Security: More devices mean more endpoints vulnerable to cyber threats.

  • Legacy Integration: Connecting old machinery with modern IoT systems can be complex.

  • Skilled Workforce: There's a growing need for technicians and engineers skilled in IoT technologies and data analytics.


Conclusion

IoT is not just enhancing factories—it’s reinventing them. By creating environments that are intelligent, adaptive, and efficient, IoT is laying the groundwork for self-optimizing manufacturing systems. The smart factory of the future is already here—and it’s powered by sensors, data, and connectivity.

For manufacturers aiming to stay ahead, embracing IoT is not just an upgrade—it’s a strategic imperative. As the technology matures, its integration will become the defining factor between industrial leaders and those left behind.

February 25, 2025

Top 7 Technologies Powering Industry 4.0 in 2025

Top 7 Technologies Powering Industry 4.0 in 2025

As we move deeper into the digital age, Industry 4.0 continues to evolve, transforming the global industrial landscape. In 2025, the Fourth Industrial Revolution is no longer just about smart factories—it’s about intelligent ecosystems where data, machines, and people interact in real time to optimize every facet of production and service delivery.

Here are the top 7 technologies driving Industry 4.0 in 2025, pushing boundaries and redefining how industries innovate and compete.


1. Industrial Internet of Things (IIoT)

The Industrial Internet of Things remains the backbone of Industry 4.0 in 2025. Sensors, devices, and machines are more interconnected than ever, enabling seamless data exchange across the value chain. With 5G and Wi-Fi 6 networks in place, real-time communication between equipment and cloud platforms ensures immediate response and adaptive operations.

Key 2025 Developments:

  • Edge computing combined with IIoT for faster local decisions.

  • AI-powered predictive analytics in sensor networks.

  • Interoperable systems standardization (e.g., OPC UA FX).


2. Artificial Intelligence and Machine Learning (AI/ML)

AI and ML have gone from experimentation to full-scale deployment. In 2025, autonomous systems powered by advanced algorithms not only monitor performance but also learn and improve over time.

Applications:

  • Smart quality control using computer vision.

  • Predictive maintenance with anomaly detection.

  • AI-driven supply chain optimization.

Emerging Trend: Federated learning enables models to train collaboratively across factories without sharing sensitive data.


3. Digital Twins

A digital twin is a virtual replica of a physical system. In 2025, this technology is central to simulation, testing, and performance monitoring—especially in complex industries like aerospace, automotive, and energy.

Benefits:

  • Real-time diagnostics and troubleshooting.

  • Lifecycle management from design to decommissioning.

  • Integration with AI for continuous optimization.

Digital twins are now commonly used not just for machines, but for entire production lines and ecosystems.


4. 5G and Advanced Connectivity

2025 marks the full maturity of 5G networks in industrial environments. Its ultra-low latency, high bandwidth, and device density support massive IIoT deployments and remote control of machinery.

Key Use Cases:

  • Real-time AR/VR applications for maintenance and training.

  • Autonomous guided vehicles (AGVs) in logistics.

  • Seamless cloud-edge communication in smart factories.

What’s Next: Integration of 6G research into pilot programs for even more advanced applications.


5. Additive Manufacturing (3D Printing)

3D printing is no longer just for prototyping. In 2025, additive manufacturing is widely used for on-demand production, reducing material waste and shortening lead times.

Key Advances:

  • Multi-material and metal 3D printing for high-performance parts.

  • AI-generated generative designs optimized for printability.

  • Integration with ERP and MES systems for seamless workflow.

This technology supports mass customization—tailoring products at scale without added cost.


6. Augmented Reality (AR) and Virtual Reality (VR)

AR and VR tools have matured into critical industrial technologies, enhancing human-machine interaction and decision-making.

Industrial Applications:

  • Remote assistance and digital overlays for technicians.

  • Virtual prototyping and immersive design collaboration.

  • Operator training in simulated environments.

2025 Highlight: Mixed Reality (MR) is bridging AR and VR, offering more immersive, interactive, and spatially aware experiences.


7. Cybersecurity Mesh Architecture (CSMA)

With increased connectivity comes heightened risk. In 2025, traditional perimeter-based cybersecurity is obsolete. Instead, industries adopt a Cybersecurity Mesh Architecture, where security is built into every node and device.

Key Elements:

  • Zero Trust security models.

  • AI-powered threat detection.

  • Decentralized identity and access management.

This ensures resilience across the entire digital infrastructure—especially important for critical sectors like energy, healthcare, and defense.


Summary

Industry 4.0 in 2025 is defined by intelligent collaboration between machines, data, and people. These seven technologies—IIoT, AI/ML, digital twins, 5G, additive manufacturing, AR/VR, and cybersecurity mesh—are not just shaping factories, but entire industrial ecosystems. As these technologies converge, they empower businesses to be more agile, efficient, and sustainable, setting a new standard for innovation in the digital era.

For companies looking to remain competitive, embracing these technologies is no longer optional—it’s essential for survival and success in the fourth industrial revolution.

February 24, 2025

Industry 4.0 Explained: What It Is and Why It Matters

Industry 4.0 Explained: What It Is and Why It Matters

In the ever-evolving landscape of modern manufacturing and production, a new era has emerged—Industry 4.0. More than just a buzzword, Industry 4.0 represents a fundamental shift in how industries operate, driven by connectivity, data, and automation. This article explores what Industry 4.0 truly means and why it holds such significance in today’s global economy.

What is Industry 4.0?

Industry 4.0, often referred to as the Fourth Industrial Revolution, marks the convergence of cyber-physical systems, the Internet of Things (IoT), cloud computing, and artificial intelligence in manufacturing and industrial practices. Unlike the previous revolutions—mechanization (1.0), mass production (2.0), and automation (3.0)—Industry 4.0 is about creating smart factories where machines, systems, and humans communicate and collaborate in real time.

At its core, Industry 4.0 is the digital transformation of manufacturing, focusing on:

  • Interconnectivity through IoT and wireless sensors.

  • Real-time data collection and analysis.

  • Automation and smart decision-making.

  • Integration of physical production with digital technologies.

Key Technologies Driving Industry 4.0

Several innovative technologies underpin Industry 4.0, including:

  • Internet of Things (IoT): Enables devices to communicate, monitor, and exchange data.

  • Big Data and Analytics: Analyzes vast datasets for predictive maintenance, quality control, and optimization.

  • Artificial Intelligence (AI) and Machine Learning (ML): Powers smart decision-making and adaptive systems.

  • Cyber-Physical Systems (CPS): Physical machinery integrated with computing and networking for real-time control.

  • Cloud Computing: Provides scalable storage and remote access to data and applications.

  • Additive Manufacturing (3D Printing): Revolutionizes prototyping and customized production.

  • Augmented Reality (AR): Supports training, maintenance, and remote collaboration.

Why Industry 4.0 Matters

1. Enhanced Efficiency and Productivity

By leveraging real-time data, smart machines can self-optimize and perform predictive maintenance, reducing downtime and increasing operational efficiency.

2. Customization and Flexibility

Industry 4.0 enables mass customization—producing individualized products at scale without sacrificing efficiency, catering to evolving consumer demands.

3. Improved Quality and Accuracy

Advanced analytics and automation help identify defects and irregularities early in the process, ensuring higher quality and fewer errors.

4. Sustainability and Resource Optimization

Smart systems optimize energy and material use, minimizing waste and supporting sustainable production practices.

5. Enhanced Decision-Making

With real-time insights and AI-driven analysis, managers and operators can make informed, strategic decisions quickly and accurately.

6. Global Competitiveness

Adopting Industry 4.0 technologies helps companies remain competitive in the global market by improving innovation, speed to market, and responsiveness to change.

Challenges to Implementation

Despite its advantages, Industry 4.0 adoption comes with hurdles:

  • Cybersecurity risks due to interconnected systems.

  • High initial investment in infrastructure and training.

  • Skill gaps requiring upskilling and reskilling of the workforce.

  • Data integration issues from legacy systems.

The Future of Industry 4.0

As technology evolves, Industry 4.0 will become even more intelligent, connected, and autonomous. Concepts like Industry 5.0, which focuses on human-centric, sustainable, and resilient systems, are already emerging. However, the foundation laid by Industry 4.0 will continue to be the backbone of future innovations in manufacturing and automation.

Summary

Industry 4.0 is not a distant vision—it is a present-day reality reshaping how industries operate. By embracing this digital revolution, companies can unlock new levels of productivity, agility, and innovation. While the journey may involve challenges, the rewards of becoming a smart, data-driven enterprise are profound and long-lasting. For businesses aiming to thrive in the digital age, understanding and adopting Industry 4.0 is no longer optional—it’s essential.

Automatic heating and mixing process of two materials (S7-300 LAD).

Automatic heating and mixing process of two materials (S7-300 LAD).

This is PLC Program for automatic heating and mixing process of two materials.

Problem Description



Two material are collected in a tank and mixed till it achieves set temperature. Make ladder diagram logic for this automatic process.



Problem Diagram




Problem Solution

We can solve this logic by simple PLC ladder language. For this technique take into account 2 separate level switches to sight the extent of 2 completely different materials (Material 1&material 2).



Also take into account one level switch for empty level detection.

For dominant the extent we will use single acting valve (fully open and totally close).For mixing, mixer is employed and it's connected with motor shaft.

Heater and temperature device square measure put in within the tank. Here materials square measure mixed till it reaches the point of temperature and once combining discharge valve (Q0.4) are going to be operated to empty the mixed materials.



Program

Here is PLC program for automatic heating and mixing process of two materials.



List of Inputs/Outputs

Inputs List:-

Cycle START button:-I0.0

Cycle STOP button:-I0.1

Level of material 2:-I0.2

Level of material 1:-I0.3

Empty level SW:-I0.4

Temp sensor:-I0.5

Outputs List:-

Material 1 valve:-Q0.0

Material 2 valve:-Q0.1

Agitator motor:-Q0.2

Heater:-Q0.3

Discharge valve:-Q0.4

M Memory:-

M0.0=Master coil.







Ladder diagram for automatic heating and mixing process of two materials.














Program Description

Network 1 shows simple latching circuit for cycle ON and cycle OFF. Cycle can be started by pressing cycle START button (I0.0) and can be stopped by pressing cycle STOP button (I0.1).

In network 2 material 1 valve (Q0.0) is operated. When empty level SW (I0.4) is detected or cycle start button is pressed, material 1 valve (Q0.0) will be ON.

In network 3 material 2 valve is operated. When level of material 1 (I0.3) is detected, material 2 valve (Q0.1) will be ON.

In network 4 heater and agitator motor are operated. When level of material (I0.5) is detected, heater (Q0.3) and agitator motor (Q0.2) will be ON.

In network 5, when temp sensor (I0.5) is detected, discharge valve (Q0.4) will be ON.





Note:-Application is only for learning and educational purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.



All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation may be different in actual applications. Also all interlocks are not considered in the application.




February 23, 2025

Automatic heating and mixing process of two materials (S7-300 FBD).

Automatic heating and mixing process of two materials (S7-300 FBD).

This is PLC Program for automatic heating and mixing process of two materials.

Problem Description



Two material are collected in a tank and mixed till it achieves set temperature. Make ladder diagram logic for this automatic process.





Problem Solution

This logic can be implemented using a simple PLC ladder diagram.

System Description:

  • Level Detection:
    Use two separate level switches to detect the level of two different materials (Material 1 and Material 2) inside the mixing tank.
    Additionally, one empty level switch is used to detect when the tank is empty.

  • Filling Mechanism:
    A single-acting valve (either fully open or fully closed) is used to control the inflow of materials into the tank.

  • Mixing Mechanism:
    A mixer is installed inside the tank, connected to a motor shaft, to ensure proper mixing of the materials.

  • Heating Mechanism:
    A heater and a temperature sensor are installed to monitor and control the temperature of the mixture.

Control Logic Overview:

  1. When the tank is empty (as detected by the empty level switch), open the valve to start filling Material 1 and Material 2 based on their respective level switches.

  2. Once both materials reach their required levels, close the inlet valve.

  3. Start the mixer motor to begin mixing the materials.

  4. Simultaneously, turn on the heater and monitor the temperature using the temperature sensor.

  5. Continue mixing and heating until the mixture reaches the desired set temperature.

  6. Once the temperature is reached:

    • Stop the mixer and heater.

    • Open the discharge valve (Q0.4) to empty the tank.

  7. After the tank is emptied, the process can restart based on the empty level switch detection.



Program

Here is PLC program for automatic heating and mixing process of two materials.



List of Inputs/Outputs

Inputs List:-

Cycle START button:-I0.0

Cycle STOP button:-I0.1

Level of material 2:-I0.2

Level of material 1:-I0.3

Empty level SW:-I0.4

Temp sensor:-I0.5


Outputs List:-

Material 1 valve:-Q0.0

Material 2 valve:-Q0.1

Agitator motor:-Q0.2

Heater:-Q0.3

Discharge valve:-Q0.4


M Memory:-

M0.0=Master coil.

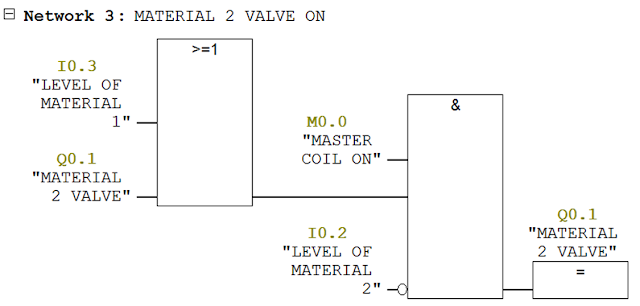

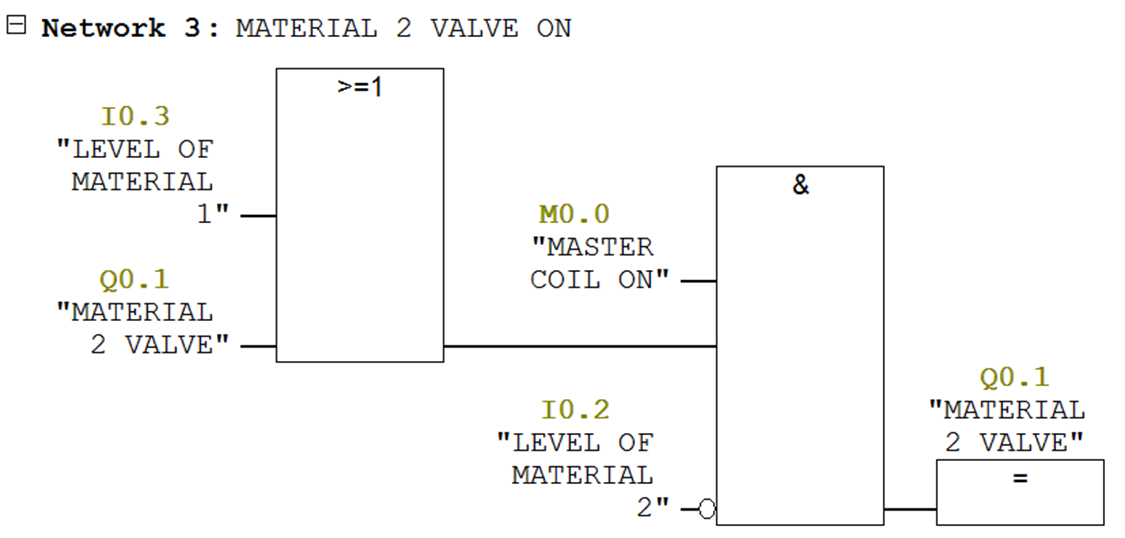

FBD diagram for automatic heating and mixing process of two materials.

































Program Description

This example illustrates a simple control process divided into five logical networks. The process demonstrates a basic sequence for material filling, mixing, and discharge, using input/output devices. This application is intended for educational and learning purposes only.


🔹 Network 1: Cycle Start/Stop Control (Latching Circuit)

  • A latching circuit is used to control the cycle operation.

  • The cycle starts when the Cycle START push button (I0.0) is pressed.

  • The cycle stops when the Cycle STOP push button (I0.1) is pressed.


🔹 Network 2: Material 1 Valve Control

  • The Material 1 valve (Q0.0) is turned ON under either of the following conditions:

  • The Cycle START button (I0.0) is pressed.

  • The Empty Level Switch (I0.4) is activated.


🔹 Network 3: Material 2 Valve Control

  • When the level of Material 1 is detected (I0.3), the Material 2 valve (Q0.1) is turned ON to begin the second stage of filling.


🔹 Network 4: Heater and Agitator Motor Control

  • Once the level of the combined materials is detected by Level Sensor (I0.5):

  • The Agitator Motor (Q0.2) is also turned ON to begin the mixing process.

  • The Heater (Q0.3) is turned ON.


🔹 Network 5: Discharge Valve Control

  • When the Temperature Sensor (I0.5) indicates the required condition is met, the Discharge Valve (Q0.4) is turned ON to release the processed material.


⚠️ Disclaimer

  • This application is designed only for educational and demonstration purposes. It may differ from real-world applications in functionality and safety requirements.

  • All parameters and graphical representations used in this example are illustrative only and may vary in practical scenarios.

  • Critical interlocks and safety measures are not included in this simplified example.

  • Users must ensure proper implementation, installation, and maintenance, and are fully responsible for the safe operation of any PLC system derived from this concept.

  • Always follow safety standards and consult appropriate guidelines during actual deployment.

February 22, 2025

Count products passing on the conveyor using counter instruction in FBD language in Simatic Manager

Count products passing on the conveyor using counter instruction (S7-300 FBD).



This is PLC Program for counting products passing on the conveyor using counter instruction.



Problem Description

On the conveyor boxes are passing, we need to count boxes passing on the conveyor. Write PLC program for this application using FBD diagram language.

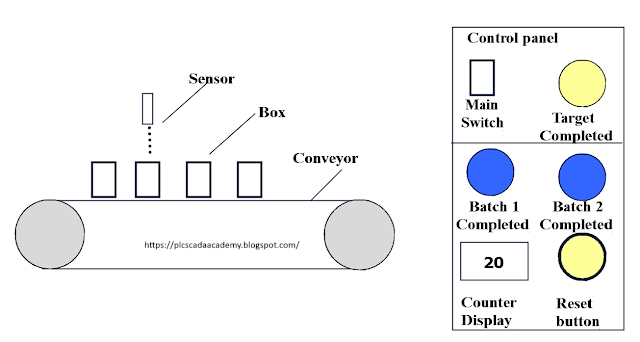

Problem Diagram




Problem Solution

For this example we will use PLC programming and counter instruction.

Sensor is used to detect the boxes passing on the conveyor and show the count value on the display.

Here we considered two batches so when it will be completed indication lamp will glow.

Once production target is completed, total counter value can be reset by the reset button.



Program

Here is PLC program for counting products passing on the conveyor using counter instruction.

List of Inputs/Outputs

Inputs List:-

Box detector=I0.0

Reset button= I0.1

Main SW=I0.2

Outputs List:-

Target competed indication:- Q0.0

Batch 1 completed indication:-Q0.1

Batch 2 completed indication:-Q0.2






FBD diagram for counting products passing on the conveyor using counter instruction.






Program Description


In network 1 we've used on Main SW (I0.2) to START out the system and that we used NO contact of box detector (I0.0) nonparallel. Here we tend to thought-about one UP counter thus once box detector (I0.0) detects box then counter can count.

Here additionally we've taken target completed indication lamp (Q0.0) for target completion indication.



By pressing RESET BUTTON (I0.1) user will RESET the previous production record.

Counter operation boost count the boxes and RESET BUTTON (I0.1) for reset the assembly record. And preset value (PV) is 40 products and Counter value (CV) is MW10 for storage actual boxes on the conveyor detected by the sensor.

In network 2 we tend to took batch1 logic. Here we tend to used comparator for counting 20 boxes for batch 1 and once it'll be completed then batch 1 completed indication lamp (Q0.1) will ON.



In network 3 we tend to took batch 2 logic. Here we tend to used comparator for investigating 20 boxes for batch 1 and once it'll be completed then batch 2 competed indication lamp (Q0.2) will ON.



Note:-Application is only for learning and educational purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.



All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation may be different in actual applications. Also all interlocks are not considered in the application.




February 21, 2025

Count products passing on the conveyor using counter instruction in ladder using Simatic manager

Count products passing on the conveyor using counter instruction (S7-300 LAD).



This is PLC Program for counting products passing on the conveyor using counter instruction.



Problem Description

On the conveyor boxes are passing, we need to count boxes passing on the conveyor. Write PLC program for this application using ladder diagram language.



Problem Diagram


Problem Solution

For this example we will use PLC programming and counter instruction.

Sensor is used to detect the boxes passing on the conveyor and show the count value on the display.

Here we considered two batches so when it will be completed indication lamp will glow.

Once production target is completed, total counter value can be reset by the reset button.



Program

Here is PLC program for counting products passing on the conveyor using counter instruction.

List of Inputs/Outputs

Inputs List:-

Box detector=I0.0

Reset button= I0.1

Main SW=I0.2

Outputs List:-

Target competed indication: - Q0.0

Batch 1 completed indication: - Q0.1

Batch 2 completed indication: - Q0.2





Ladder diagram for counting products passing on the conveyor using counter instruction.










Program Description


In network 1 we've used on Main SW (I0.2) to START out the system and that we used NO contact of box detector (I0.0) nonparallel. Here we tend to thought-about one UP counter thus once box detector (I0.0) detects box then counter can count.

Here additionally we've taken target completed indication lamp (Q0.0) for target completion indication.



By pressing RESET BUTTON (I0.1) user will RESET the previous production record.

Counter operation boost count the boxes and RESET BUTTON (I0.1) for reset the assembly record. And preset value (PV) is 40 products and Counter value (CV) is MW10 for storage actual boxes on the conveyor detected by the sensor.

In network 2 we tend to took batch1 logic. Here we tend to used comparator for counting 20 boxes for batch 1 and once it'll be completed then batch 1 completed indication lamp (Q0.1) will ON.



In network 3 we tend to took batch 2 logic. Here we tend to used comparator for investigating 20 boxes for batch 1.and once it'll be completed then batch 2 competed indication lamp (Q0.2) will ON.

Note:-Application is only for learning and educational purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.



All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation may be different in actual applications. Also all interlocks are not considered in the application.
