3 Phase motor control (Forward Reverse) using TIA portal (Ladder language).

This is PLC Program for 3 Phase Motor control (Forward/Reverse).



Problem Description

Write the PLC program for 3 phase motor control (Forward Reverse) in TIA PORTAL using LAD language.





Problem Diagram

Problem Solution

In this case we'd like to control motor in each direction which will be attainable solely by forward/Reverse negative feedback circuit or Logic.

Here we tend to solve this downside by easy Forward/Reverse management Logic.

So here we are going to take into account one 3 phase motor for Forward and Reverse Operation.

And we can take 2 contactors or relays for control as a result of we'd like 2 totally different directions here.

Also we must always take into account 3 push buttons for forward, reverse and stop operate.

So here operator can use FWD PB for forward operation, REV PB for reverse operation and STOP PB for stop operate.

Program

Here is PLC program for 3 Phase Motor control (Forward/Reverse).

List of Inputs/Outputs

Inputs List:-

FWD PB-I0.0

REV-I0.1

STOP PB-I0.2

Motor Trip-I0.3

Outputs List:-

Forward motor contactor-Q0.0

Reverse motor contactor-Q0.1



Ladder diagram for 3 Phase Motor control (Forward/Reverse).

Program Description

In this application we will use Siemens S7-300 PLC and TIA PORTAL Software for programming. We can also design this logic with relay circuit.

Network 1:-In this network forward motor contactor (Q0.0) can be start by pressing FBD PB (I0.0) and can be stopped by pressing STOP PB (I0.2).

Network 2:-In this network reverse motor contactor (Q0.1) can be started by pressing REV PB(I0.1) and can be stopped by pressing STOP PB (I0.2).





Note:-Application is only for learning purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.



All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation may be different in actual applications. Also all interlocks are not considered in the application.

3 Phase motor control (Forward Reverse) using SIMATIC manager (LAD language).

This is PLC Program for 3 Phase Motor control (Forward/Reverse).

Problem Description

Write the PLC program for 3 phase motor control (Forward Reverse) in SIMATIC manager using LAD language.

Problem Diagram

Problem Solution

In this case we'd like to control motor in each direction which will be attainable solely by forward/Reverse negative feedback circuit or Logic.

Here we tend to solve this downside by easy Forward/Reverse management Logic.

So here we are going to take into account one 3 phase motor for Forward and Reverse Operation.

And we can take 2 contactors or relays for control as a result of we'd like 2 totally different directions here.

Also we must always take into account 3 push buttons for forward, reverse and stop operate.

So here operator can use FWD PB for forward operation, REV PB for reverse operation and STOP PB for stop operate.

Program

Here is PLC program for 3 Phase Motor control (Forward/Reverse).

List of Inputs/Outputs

Inputs List:-

FWD PB-I0.0

REV-I0.1

STOP PB-I0.2

Motor Trip-I0.3

Outputs List:-

Forward motor contactor-Q0.0

Reverse motor contactor-Q0.1



LAD diagram for 3 Phase Motor control (Forward/Reverse).

Program Description

In this application we will use Siemens S7-300 PLC and SIMATIC manager Software for programming. We can also design this logic with relay circuit.

Network 1:-In this network forward motor contactor (Q0.0) can be start by pressing FBD PB (I0.0) and can be stopped by pressing STOP PB (I0.2).

Network 2:-In this network reverse motor contactor (Q0.1) can be started by pressing REV PB(I0.1) and can be stopped by pressing STOP PB (I0.2).



Note:-Application is only for learning purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.

All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation may be different in actual applications. Also all interlocks are not considered in the application.



3 Phase motor control (Forward Reverse) using SIMATIC manager (FBD language).

This is PLC Program for 3 Phase Motor control (Forward/Reverse).

Problem Description

Write the PLC program for 3 phase motor control (Forward Reverse) in SIMATIC manager using FBD language.

Problem Diagram

Problem Solution

In this case we'd like to control motor in each direction which will be attainable solely by forward/Reverse negative feedback circuit or Logic.

Here we tend to solve this downside by easy Forward/Reverse management Logic.

So here we are going to take into account one 3 phase motor for Forward and Reverse Operation.

And we can take 2 contactors or relays for control as a result of we'd like 2 totally different directions here.

Also we must always take into account 3 push buttons for forward, reverse and stop operate.

So here operator can use FWD PB for forward operation, REV PB for reverse operation and STOP PB for stop operate.

Program

Here is PLC program for 3 Phase Motor control (Forward/Reverse).

List of Inputs/Outputs

Inputs List:-

FWD PB-I0.0

REV-I0.1

STOP PB-I0.2

Motor Trip-I0.3

Outputs List:-

Forward motor contactor-Q0.0

Reverse motor contactor-Q0.1



FBD diagram for 3 Phase Motor control (Forward/Reverse).

Program Description

In this application we will use Siemens S7-300 PLC and SIMATIC manager Software for programming. We can also design this logic with relay circuit.

Network 1:-In this network forward motor contactor (Q0.0) can be start by pressing FBD PB (I0.0) and can be stopped by pressing STOP PB (I0.2).

Network 2:-In this network reverse motor contactor (Q0.1) can be started by pressing REV PB(I0.1) and can be stopped by pressing STOP PB (I0.2).



Note:-Application is only for learning purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.

All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation may be different in actual applications. Also all interlocks are not considered in the application.



PLC Program for Machine Lubrication Control Using S7-300 in LAD

 This is PLC Program for Machine Lubrication Control

Problem Description

The goal is to ensure that the lubrication system is activated before the machine starts. The lubrication should only occur when the machine is in the "ready to start" state, and the lubrication process should stop after a predefined period, ensuring that the machine is properly lubricated before operation.

Problem Diagram

Problem Solution

In this example, we aim to solve the problem using simple conditional logic. We have a gearbox motor that requires lubrication before it can be started.

To achieve this, we use a lubrication motor that supplies lubrication oil to the main gearbox motor. We will implement an interlock system to ensure that the operator cannot operate the main motor directly.

Here’s how the system works:

The operator must first start the lubrication motor (pump) before they can operate the main gearbox motor.

This interlock ensures that the gearbox motor is properly lubricated, which helps in maintaining its longevity.

The operator uses dedicated start and stop push buttons for each motor:

• Lubrication Motor (Pump): Start and Stop push buttons.
• Main Gearbox Motor: Separate Start and Stop push buttons.

With this setup, we ensure the gearbox motor receives the necessary lubrication before operation, thus protecting it and extending its operational life.

Program

Here is PLC Program for Machine Lubrication Control.

List of Inputs/Outputs

Inputs List: -

Cycle Start PB: -I0.0

Cycle stop PB: -I0.1

Oil Pump Start PB-I0.3

Oil Pump Stop PB-I0.2

Main Motor Start PB-I0.5

Main Motor Stop PB-I0.4

Outputs List:-

Master coil:-Q0.0

Oil Pump Motor-Q0.1

Main Motor-Q0.2

Function block diagram to provide lube for the machine.

Program Description

In the first and second networks, we use a set-reset circuit. The master coil can be started by pressing the Cycle Start PB and stopped by pressing the Cycle Stop PB.

In network 3, the oil pump can be started by pressing the Oil Pump Start PB and stopped by pressing the Oil Pump Stop PB.

In network 4, the main motor can be started by pressing the Main Motor Start PB and stopped by pressing the Main Motor Stop PB.

Note: -Application is only for learning purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.

All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation might be different in actual applications. Also all interlocks are not considered in the application.



PLC Program for Machine Lubrication Control Using S7-300 in FBD

This is PLC Program for Machine Lubrication Control

Problem Description

The goal is to ensure that the lubrication system is activated before the machine starts. The lubrication should only occur when the machine is in the "ready to start" state, and the lubrication process should stop after a predefined period, ensuring that the machine is properly lubricated before operation.

Problem Diagram

Problem Solution

In this example, we aim to solve the problem using simple conditional logic. We have a gearbox motor that requires lubrication before it can be started.

To achieve this, we use a lubrication motor that supplies lubrication oil to the main gearbox motor. We will implement an interlock system to ensure that the operator cannot operate the main motor directly.

Here’s how the system works:

The operator must first start the lubrication motor (pump) before they can operate the main gearbox motor.

This interlock ensures that the gearbox motor is properly lubricated, which helps in maintaining its longevity.

The operator uses dedicated start and stop push buttons for each motor:

• Lubrication Motor (Pump): Start and Stop push buttons.
• Main Gearbox Motor: Separate Start and Stop push buttons.

With this setup, we ensure the gearbox motor receives the necessary lubrication before operation, thus protecting it and extending its operational life.

Program

Here is PLC Program for Machine Lubrication Control.

List of Inputs/Outputs

Inputs List: -

Cycle Start PB: -I0.0

Cycle stop PB: -I0.1

Oil Pump Start PB-I0.3

Oil Pump Stop PB-I0.2

Main Motor Start PB-I0.5

Main Motor Stop PB-I0.4

Outputs List:-

Master coil:-Q0.0

Oil Pump Motor-Q0.1

Main Motor-Q0.2

Function block diagram to provide lube for the machine.

Program Description

In the first and second networks, we use a set-reset circuit. The master coil can be started by pressing the Cycle Start PB and stopped by pressing the Cycle Stop PB.

In network 3, the oil pump can be started by pressing the Oil Pump Start PB and stopped by pressing the Oil Pump Stop PB.

In network 4, the main motor can be started by pressing the Main Motor Start PB and stopped by pressing the Main Motor Stop PB.

Note: -Application is only for learning purpose .Above application may be different from actual application. This application can be done in other PLC also. Users are responsible for correct operation of the PLC system and for any possible injuries and or material damages resulting from the use of this program. It is necessary to take care of safety during implementation, installation, maintenance and operation.

All parameters and graphical representations considered in this example are for explanation purpose only, parameters or representation might be different in actual applications. Also all interlocks are not considered in the application.

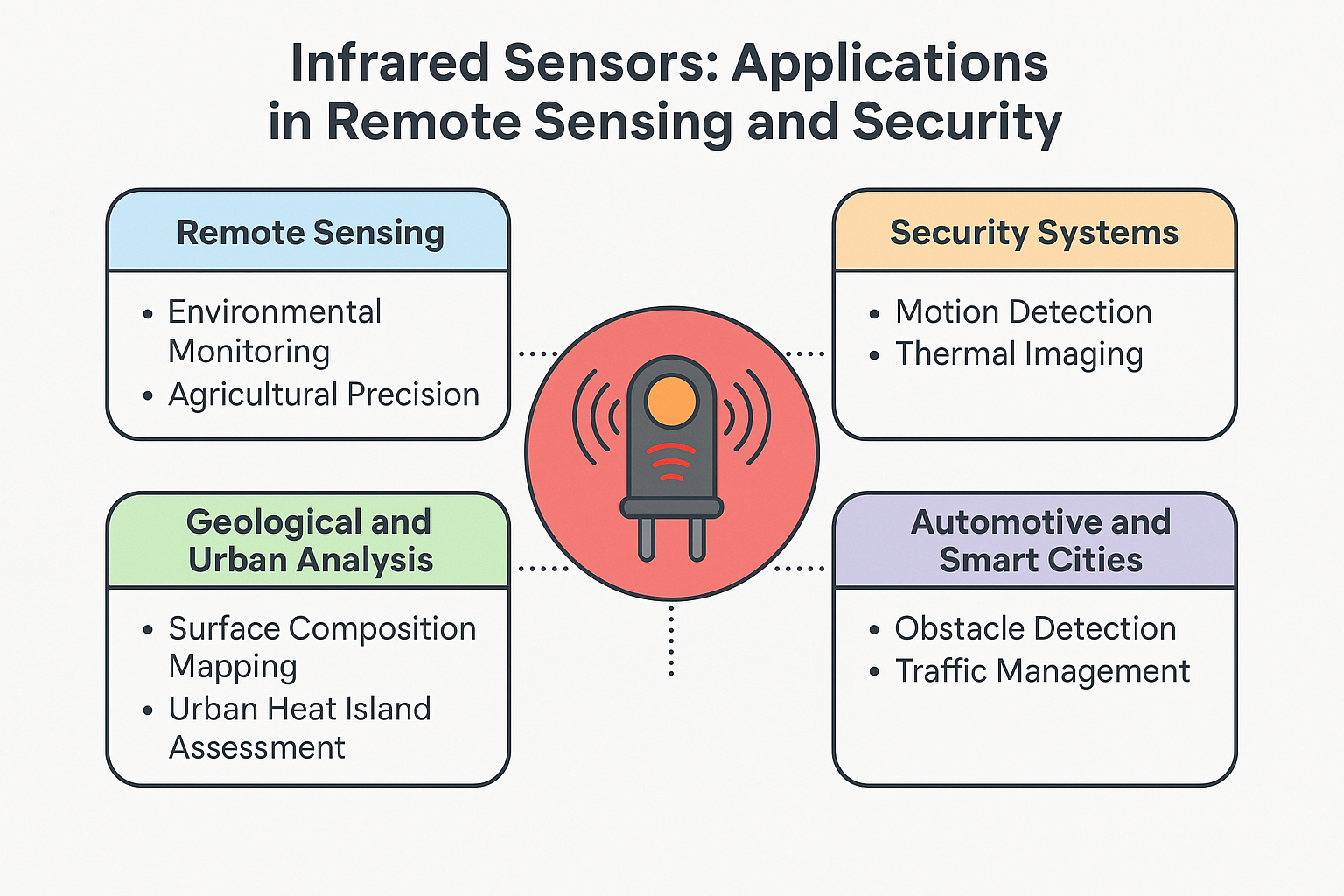

Infrared Sensors: Applications in Remote Sensing and Security
